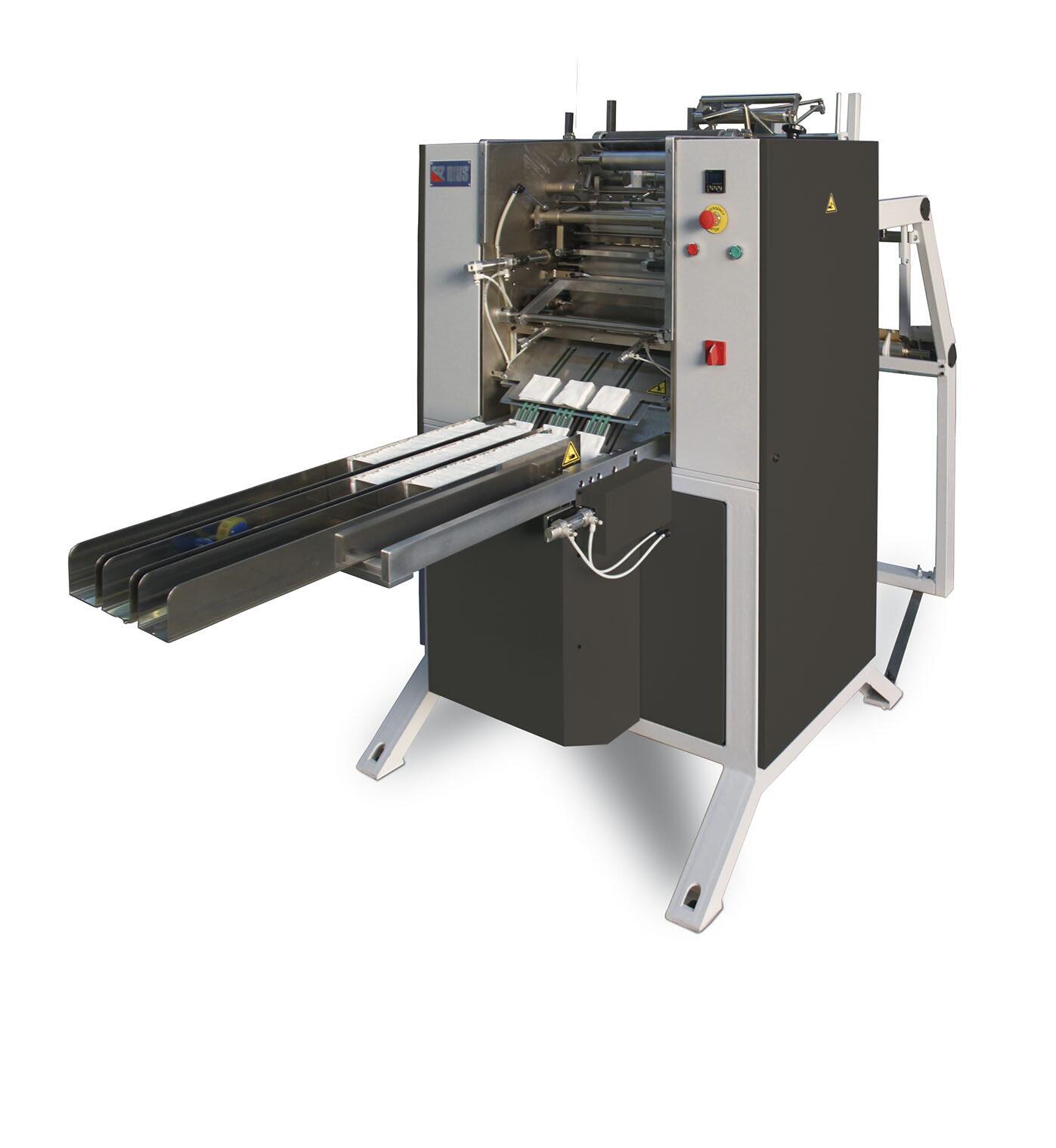

SN-4V-3V-PA

Fully automatic cutting and folding machine for the production of compresses.
  • American folding type (hidden edges).
  • Direct feeding from fabric reel pre-cut to the specific width, according to the final dimension of the compress.
  • Direct feeding from mesh fabric or loom.
  • Automatic longitudinal and transversal cutting system.
  • Transverse folds made by means of a pneumatic system.
  • Blower system to avoid yarn residues.
  • Vertical outlet for subsequent bagging and counter mechanism for separation by alternate groups.
  • Number of product outlets: 3.
  • Compress dimensions: 5 x 5 / 7.5 x 7.5 / 10 x 10.
  • Number of folds: 8, 12 or 16.
  • Vaporization system (optional).
  • RX contrast wire welding system (optional).
