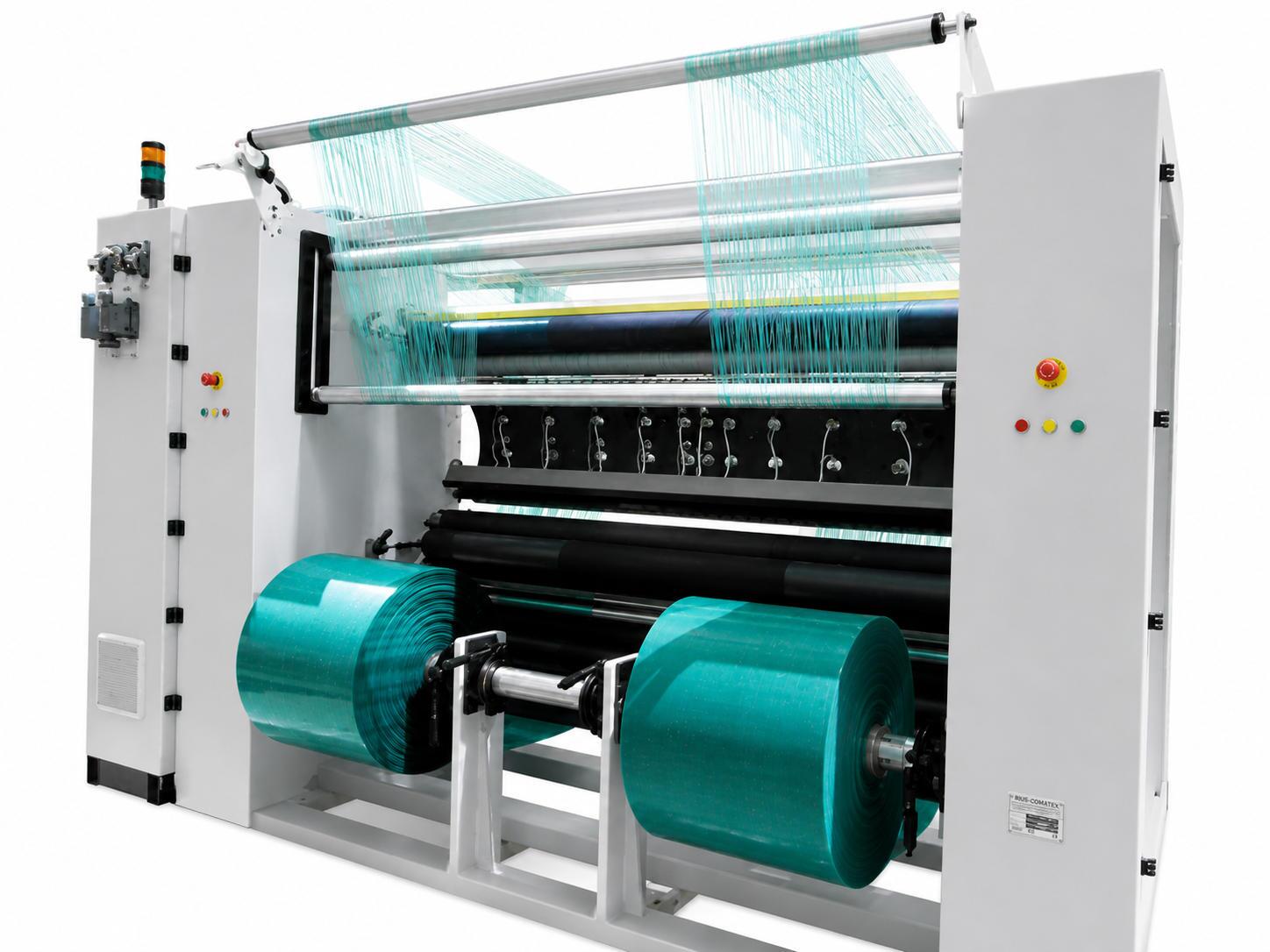

TA-1200-DRX

Feeding and stretching system from polyethylene film, for feeding Raschel machines.
  • Double feeding system.
  • Double layer of PE film.
  • Double cutting system on each side.
  • Support for polyethylene rolls up to a maximum diameter of 1,000 mm and a maximum width of 1,200 mm (two rolls in total).
  • Stretching unit by means of heating cylinder on both sides.
  • Automatic feeding system on one side for upper weft yarn.
  • Automatic bottom weft feeding system.
  • Automatic lower warp feeding system.
  • Automatic feeding system on the opposite side for upper warping yarn.
  • Electronic temperature regulator. The temperature can be regulated from 80º to 130ºC. Two completely independent regulating systems on both sides of the unit.
  • The waste edges are collected on both sides of the machine, directly on reels. This collection system is performed separately from both film rolls.
  • The stretching operation is carried out by means of an adjustable gear motor.
  • The drafting ratio can be adjusted from 1:1 to 1:9.8. It can be adjusted independently on both sides.
  • Boats for yarn paraffinizing. Equipment located in the cutter-stretcher system.
Acquire the machine

The service includes

  • Start-up
  • Instruction Manual
  • Optional training courses
  • Guaranteed maintenance
